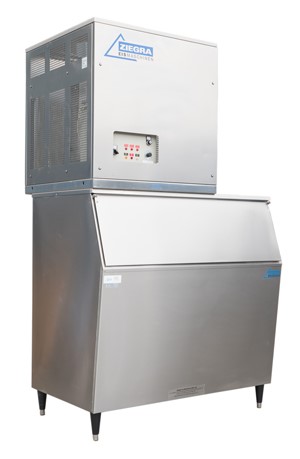

550kg flake ice machine with 280kg slope fronted ice bin

The Ziegra ZBE 550-S280 makes up to 550kg per 24 hours of flake ice in one of three sizes and stores it in a 280kg capacity slope fronted ice storage bin.

ZBE 550-S280 main features

  • Automatic operation: Ice level control system included as standard
  • Granular flake ice made at optimum temperature of -0.5°C.
  • Three sizes of ice flake available: micro, midi or macro.
  • Hygienic design with a sealed water system
  • External water filtration system supplied as standard.
  • Designed for continuous operation 24/7
  • Stainless steel construction of both the ice machine and bin
  • No moving parts in refrigeration circuit lowers risk of gas leaks
  • Poly lined bin interior for easy cleaning and chlorine resistance
  • Non CFC insulation in bin



Model

ZBE 550-S280
Standard

ZBE 550-S280
Tropical

550kg / 24h nominal capacity*

at 20°C air and 15°C water

at 35°C air and 25°C water

Storage capacity 280kg (0.85m3)

Dimensions (W x D x H)

1220 x 927 x 2120mm

Weight

140kg

145kg

Cabinet

stainless steel 1.430

Ice discharge

K type

Electricity
Power consumption
current consumption
Provided by customer
electric supply
fuse, slow-blow
cable cross section, Cu


2.0kW
4.7A

3/N/PE ~ 400V 50Hz
20A
2.5mm2


2.3kW
5.9A

3/N/PE ~ 400V 50Hz
25A
2.5mm2

Water
supply / drain

Provided by customer
pressure
quality
pH-value
hardness
temperature


3/4” BSP / 14mm O/D hose


2-5 bar
drinking water
7.2 – 9.5 pH
6 – 14 °dH  100 – 250 mg CaCO3/l
5°C - 30°C

Ambient temperature

5°C to 42°C

5°C to 45°C

Condenser
airflow
heat emission

air cooled
2,500 m3 / h
4.3 kW

air cooled
2,500 m3 / h
5 kW

Refrigerant R452a
ODP
GWP
CO² tonnes equivalent
F-Gas leak check

1.8kg
0
2140
3.852
Not required

Compressor
refrigeration capacity
evaporation temperature
condensation temperature

Fully hermetic
2.8kW
-19°C
33°C

Fully hermetic
3.1kW
-20°C
45°C

Noise level

60dBA (3m)

Shipping dimensions: W x D x H

(0.87 x 0.73 x 1.0m) + (1.4 x 0.9 x 1.28m)

Shipping weights

(155kg) + (105kg)

*according to site conditions. Air temperature, water temperature, water chemistry, air contamination and installation parameters can all effect ice output.

All product, product specifications and data are subject to change without notice

A: Ice machine
B: Ice storage
C: Water connection: 3/4" BSP
D: Electrical connection
E: Meltwater drain 14mm
F: Floor drain (by customer)

The ZBE 550-S280 ice machine will be delivered according to CE standards and ready for connection to water power and drain.

Includes as standard:

  • Condensation control
  • Phase sequence relay
  • Overload cut-out / thermal switch for all motors and compressor
  • High pressure pressostat
  • Water level monitoring
  • Ice discharge tube
  • Level control by light  barrier when bin is full
  • Flexible hose water for water supply 2m
  • Water drain hose 2m
  • PE ice scoop
  • Ziegra triple external 3 stage water filtration unit

Configuration Options



Castor mounting

The bin mounted on castors so the machine can be moved for cleaning. Comes pre-fitted to the bin.



Drain Pump

Pumps the drain water into the site drain if it is too high or far away for gravity drainage. Supplied with a 2 metre flex, it can be directly wired into a fused spur or a plug fitted (not supplied) and plugged into a standard 3 pin socket. Mount on the floor underneath the machine. Not suitable for dusty environments.



Condenser options

Water cooled instead of air-cooled:  where air-cooling is not possible.Useful in applications where the machine must be installed into an area with poor ventilation where a remote aircooled condenser is not possible.

Remote condenser option: The condenser supplied separately to the machine for remote mounting, typically outside, when the machine is to be located in areas that poorly ventilated or have airbourne contamination such as flour dust. Available as standard for indoor mounting, weatherproof for outside mounting and cu/cu saltwater resistant for mounting in areas close to the sea.

Low noise condenser: Only for remote installation. Use when the condenser will be going in an area sensitive to noise, such as residential.



Frostguard

The machine equipped to deal with intermittent temperatures below 5°C, only available in conjunction with remote condenser option above.



CoolNat Ice maker only

For connection to a central CO2 refrigeration system



Additional Hygiene Options



Hygiene +: Auto water drain

The water tank automatically drains when the machine is switched off, preventing water stagnation during periods of infrequent use.



Hygiene +: Automatic flushing

Auto flushing of system with water, includes auto water drain. Details on request.



Hygiene +: UV sterilization

Sterilization of the incoming water supply by mean of UV filter, all incoming water is passed through a powerful UV field on its way into the machine which kill almost all biohazards in the water supply. Slows down proliferation of water-borne bacteria inside the machine during operation.



Sanitiser solution: 5litre tub part # ZUK9700044

Ziegra ice machine sanitiser is an anti-bacterial product designed for both regular preventative use and intensive cleaning operations.



Spare filter cartridges: Set of replacement cartridges for the Ziegra triple kit that comes as standard with this machine, The fine and coarse cartridges require change every 6 months, the anti-scale when it runs low. Order part ZUK9700031KIT.

Set consists of :

1 x ZUK9700033 - Coarse filter

1 x ZUK9700032 - Anti-scale filter

1 x ZUK9700031 - Fine filter.





Ancillary Items



Smartcart 240

80kg capacity insulated ice cart, moulded from food safe polymer for maximum hygiene. With removeable lid. Ideal when the ice machine and bin must be located away from the point where the ice will be used.



7 day timer

Allows programming of the machine to make ice at specific times of the day or night.



GRP plantroom

A standalone GRP plantroom to protect the ice machine from the elements and thieves when the machine must be mounted outdoors. Arrives fully assembled, needs only a suitable base to bolt it down to. Only available with remote condener option above.
