30kg laboratory ice machine with 10kg integrated bin

The ZBE30-10 is a small laboratory machine designed for mounting either under or on a bench. It makes up to 30kg per day and stores 10kg in an integrated ice storage bin and is a complete packaged ice machine including, ice maker, refrigeration and condenser in one unit.

Main Features

  • Ice level control system included as standard
  • Granular flake ice made at optimum temperature of -0.5°C.
  • Two sizes of ice flake available: micro and midi, to suit a wide range of applications.
  • Hygienic design with a sealed water system
  • External water filtration system supplied as standard.
  • Designed for continuous operation 24/7
  • Stainless steel construction
  • No moving parts in refrigeration circuit lowers risk of gas leaks
  • Environmentally friendly natural refrigerant

Model

ZBE 30-10

30kg / 24 h nominal capacity*

at 20°C air and 15°C water

Dimensions (W x D x H)

400 x 500 x 713 mm

Weight

60kg

Cabinet

Inside / outside stainless steel 1.4301

Storage Capacity

10kg

Insulation, PU foam

40mm

Electricity
Power consumption
Current consumption
Provided by customer
electric supply
fuse, slow blow
cable cross section, Cu


0.3kW
1.7A

1/N/PE ~ 230V 50Hz
16A
1.5mm2

Water
Supply / drain
Provided by customer
pressure
quality
pH value
hardness

temperature


¾” BSP / 14mm

2 - 5 bar
drinking water quality
7.2 – 9.5pH
6 – 14 °dH
100 – 250mg CaCO3/l
5°C - 30°C

Ambient air temperature:

5°C to 42°C

Condenser
air flow
heat emission


230m3 / hour
0.42 kW

Refrigerant: R290
ODP
GWP

0.09kg
0
3

Compressor
refrigeration capacity
evaporation temperature
condensation temperature

Fully hermetic
0.14 kW
-11°C
33°C

Noise level:

45dBA (3m)

Shipping dimensions (w x d x h)

0.55 x 0.67 x 1.03m

Shipping weight

80kg

*according to site conditions. Air temperature, water temperature, water chemistry, air contamination and installation parameters can all effect ice output.

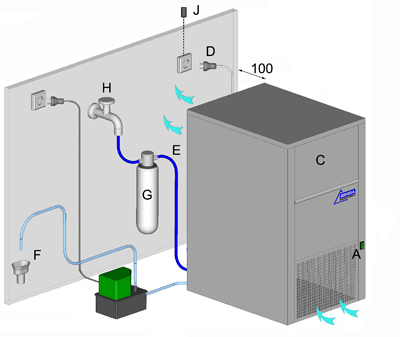

C: Ice bin
D: Electrical cable / plug: Standard UK 3 pin
E: Water connection: ¾ BSP
F: Overflow: 14mm
G: Filter: Ziegra Single supplied as standard
H: Stop valve by customer
J: socket with 13amp fuse by customer

The ZBE30-10 ice machine will be delivered according to CE standards and ready for connection to water power and drain.

Includes:



Configuration Options



Drain pump:

For applications where there is no floor level drain available. Ziegra recommend either a floor level drain or a support frame are used, but if neither of those are possible this is a lower cost option.



Water cooled condenser:

where air-cooling is not possible
Consumption cooling water: 20 litres per hour

E: water supply (ice production)
F: water discharge (eg auto water drain)
O: cooling water in
P: cooling water return or drainage, resp.



Mounting Options



Support frame:

Stainless steel support  to raise the machine by 40cm, for applications where there is no floor level drain available and the customer does not want to rely on a drain pump.

Also useful if this model is not to be used on a bench to raise it to a more ergonomic height.



Additional Hygiene Options



Hygiene +: Auto water drain

The water tank automatically drains when the machine is switched off, preventing water stagnation during periods of infrequent use.



Hygiene +: Automatic flushing

Auto flushing of system with water, includes auto water drain. Details on request.



Hygiene +: UV sterilization

sterilization of the incoming water supply by mean of UV filter, all incoming water is passed through a powerful UV field on its way into the machine which kill almost all biohazards in the water supply. Slows down proliferation of water-borne bacteria inside the machine during operation.



Sanitiser solution: 5litre tub part # ZUK9700044

Ziegra ice machine sanitiser is an anti-bacterial product designed for both regular preventative use and intensive cleaning operations.



Spare filter cartridge: #ZUK9700040

Standard replacement cartridge for the Ziegra single kit, requires change every 6 months.
