280kg slope fronted ice storage bin

280kg insulated ice storage bin with ice access through a sloped door located at the top of the bin. The bin sits of four adjustable legs for a more comfortable working height.

The top of the bin can be cut to suit direct mounting of any of our small flake or nugget ice machines from 150 to 1,200 kg/24h capacity.

Main features
  • Large access door  with low sill height for easier ice access
  • Clip supplied to hold the door up while accessing the ice
  • Adjustable support legs for user comfort
  • Poly lined interior for easy cleaning and good chlorine resistance.
  • Door opening sealed with replaceable gaskets.
  • Efficient insulation ensures good storage for flake and nugget ice
  • Easy to clean bin interior promotes good hygiene practices.
  • Main exterior panels in stainless for good corrosion resistance
  • Lowest cost storage option





Part stainless steel

Internal finish:

Polyethylene lined

Nominal ice storage capacity*


Internal volume 0.85m3

Insulation material:

Non cfc polyurethane foam


14mm ᴓ

Weight (empty):

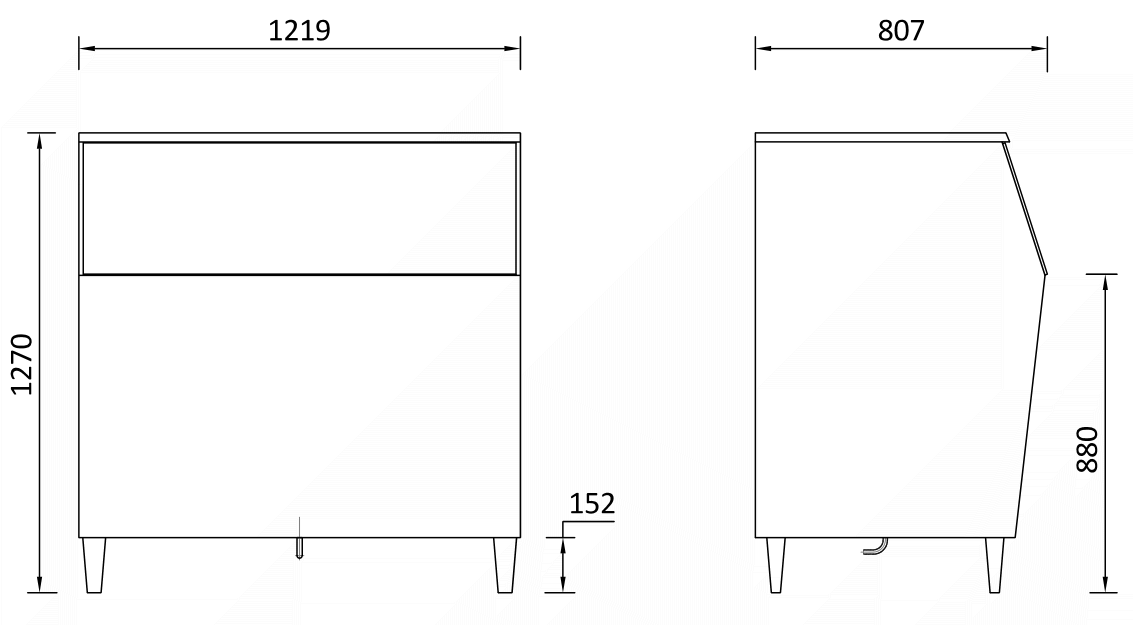

Shipping dimensions:

1 piece: (1.32 x 0.91 x 1.3m high)

Shipping weight:


For ice machines:

ZBE/ZNE models, capacities from 150kg to 1,200kg / 24h

*Estimated. Type/position of ice machines can effect the ice capacity.

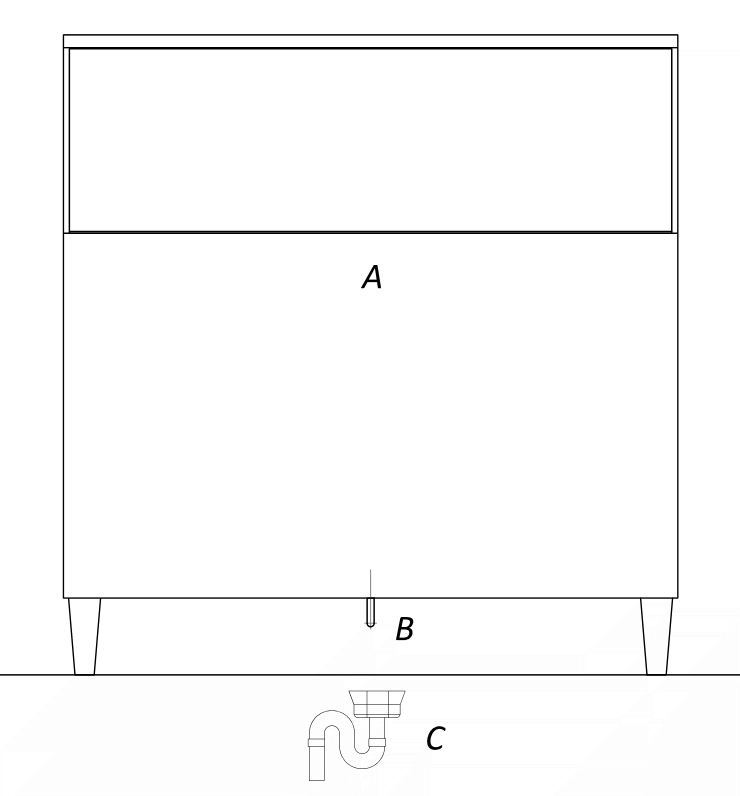

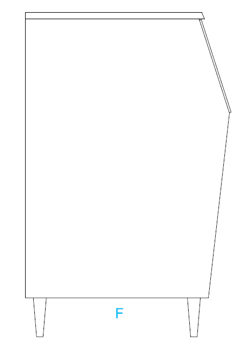

F: Drain 14mm

1 x slope fronted bin
1 x flexible 2 metre drain hose
Bin top pre-prepared for mounting selected model of ice machine

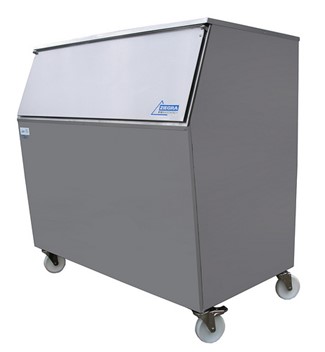

Castor mounting: The bin mounted on castors so the machine can be moved for cleaning. Comes pre-fitted to the bin.


Sanitiser solution: 5litre tub part # ZUK9700044

Ziegra ice machine sanitiser is an anti-bacterial product designed for both regular preventative use and intensive cleaning operations.


Smartcart 240

80kg capacity insulated ice cart, moulded from food safe polymer for maximum hygiene. With removeable lid. Ideal when the ice machine and bin must be located away from the point where the ice will be used.


Drain Pump

Pumps the drain water into the site drain if it is too high or far away for gravity drainage. Supplied with a 2 metre flex, it can be directly wired into a fused spur or a plug fitted (not supplied) and plugged into a standard 3 pin socket. Mount on the floor underneath the machine. Not suitable for dusty environments.
